Multilayer Piezo Special-Shaped Actuators 150 series
loading
Share to:
1.Compact size 2.Accurate positioning in nm 3.High-speed response in ms 4.Large blocking force 5.High energy conversion efficiency, low power consumption and no electromagnetic noise 6.Easy to be controlled by voltage
Features of Multilayer Piezo Special-Shaped Actuators 150 series
Compact size
Accurate positioning in nm
High-speed response in ms
Large blocking force
High energy conversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage
Scope of applications of Multilayer Actuator
Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves
Nano positioning/high-speed switching

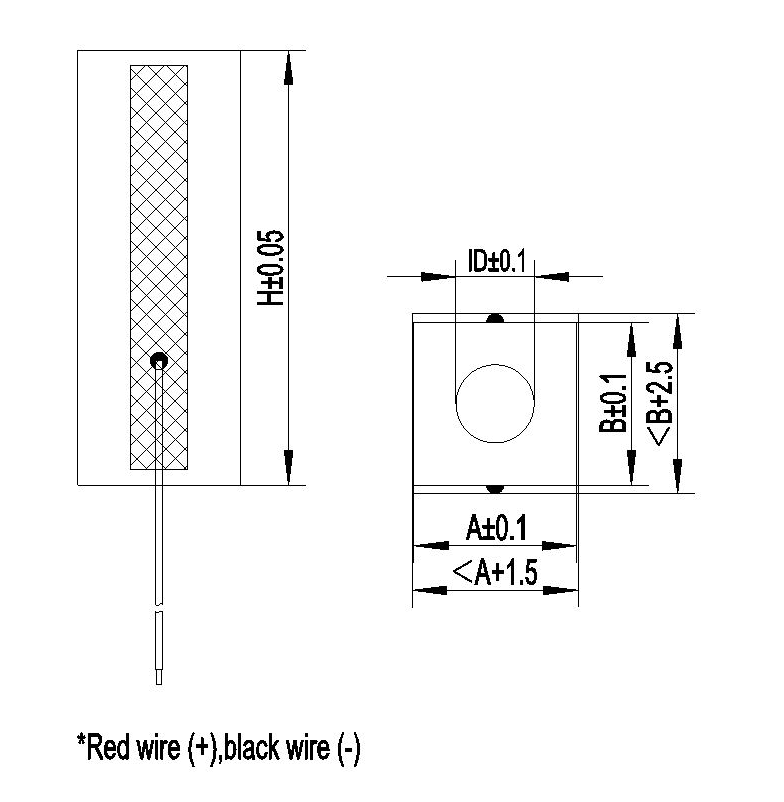

Dimension
Specification of Piezo Special-Shaped Actuator
Model
Dimensions
Nominal displacement
Blocking force
Stiffness
Electrical capacitance
Resonance Frequency
A×B/ID/H
[µm@150V]
[N@150V]
[N/µm]
[µF]
[kHz]
[mm]
±10%
±20%
±20%
KLJS150080804161
7.5×7.5/Φ3.5/16
16
1600
100
1.6
94
* Customize on request.
<template class="visibility">
Features of Multilayer Piezo Special-Shaped Actuators 150 series
Compact size
Accurate positioning in nm
High-speed response in ms
Large blocking force
High energy conversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage
Scope of applications of Multilayer Actuator
Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves
Nano positioning/high-speed switching
Dimension
Specification of Piezo Special-Shaped Actuator
Model
Dimensions
Nominal displacement
Blocking force
Stiffness
Electrical capacitance
Resonance Frequency
A×B/ID/H
[µm@150V]
[N@150V]
[N/µm]
[µF]
[kHz]
[mm]
±10%
±20%
±20%
KLJS150080804161
7.5×7.5/Φ3.5/16
16
1600
100
1.6
94
* Customize on request.
</template>
Instructions:
The product belongs to the large output, small displacement (relative to the millimeter level) electronic components. Due to the small displacement, the use of the product must pay attention to good contact with the load (preferably rigid connection). Soft connection is easy to make product displacement loss. It is generally not allowed to use no load, and a certain amount of prestress is required.
Prestress comparison table (rectangle):
Cross Sectional Area
Standard Pressure [MPa]
Maximum Pressure [MPa]
Suggested prestress [N]
Maximum prestress [N]
Length[mm]
Width[mm]
Inner Diameter[mm]
7.5
7.5
3.5
15
20
700
940
Using condition:
The product temperature range is -20~120°C, and the ambient humidity is ≤75%. If the temperature is too high, the product may be damaged or the performance may be degraded. In a high-humidity environment, the insulation resistance of the product may be lowered, which may affect the service life or damage of the product.Using condition:
<template class="visibility">
Instructions:
The product belongs to the large output, small displacement (relative to the millimeter level) electronic components. Due to the small displacement, the use of the product must pay attention to good contact with the load (preferably rigid connection). Soft connection is easy to make product displacement loss. It is generally not allowed to use no load, and a certain amount of prestress is required.
Prestress comparison table (rectangle):
Cross Sectional Area
Standard Pressure [MPa]
Maximum Pressure [MPa]
Suggested prestress [N]
Maximum prestress [N]
Length[mm]
Width[mm]
Inner Diameter[mm]
7.5
7.5
3.5
15
20
700
940
Using condition:
The product temperature range is -20~120°C, and the ambient humidity is ≤75%. If the temperature is too high, the product may be damaged or the performance may be degraded. In a high-humidity environment, the insulation resistance of the product may be lowered, which may affect the service life or damage of the product.Using condition:
</template>
Cautions:
1. The material of the product is ceramic material and has brittleness. Therefore, when using this product, the contact method should be surface contact. Do not use point contact or line contact. When using this product, the output direction and the axial direction of the device must be consistent. As shown below:
2. When the product is powered on, it is strictly forbidden to use voltage which is over rated voltage. (Refer to the 5.0 coding rule for the rated voltage.) It is recommended that the input current does not exceed 15A.
3. The output at zero displacement is the maximum output. Conversely, the output at the maximum displacement will be close to infinitely small. It is recommended to select the correct model to meet normal use.
<template class="visibility">
Cautions:
1. The material of the product is ceramic material and has brittleness. Therefore, when using this product, the contact method should be surface contact. Do not use point contact or line contact. When using this product, the output direction and the axial direction of the device must be consistent. As shown below:
2. When the product is powered on, it is strictly forbidden to use voltage which is over rated voltage. (Refer to the 5.0 coding rule for the rated voltage.) It is recommended that the input current does not exceed 15A.
3. The output at zero displacement is the maximum output. Conversely, the output at the maximum displacement will be close to infinitely small. It is recommended to select the correct model to meet normal use.
</template>
Test method:
1. The test table must be horizontal and the product must be perpendicular to the table.Test contacts must touch the center of the actuator's end face and must be placed perpendicular to the horizontal table before testing.
2. The power supply must be a DC regulated power.
3. Wiring method: the red wire is connected to the positive pole and the black wire is connected to the negative pole.
4. Specific installation: as shown in the figure below
<template class="visibility">
Test method:
1. The test table must be horizontal and the product must be perpendicular to the table.Test contacts must touch the center of the actuator's end face and must be placed perpendicular to the horizontal table before testing.
2. The power supply must be a DC regulated power.
3. Wiring method: the red wire is connected to the positive pole and the black wire is connected to the negative pole.
4. Specific installation: as shown in the figure below
